2-40 — AUTO TRANS ASM AND REPAIR KIT (#10) — 19 parça

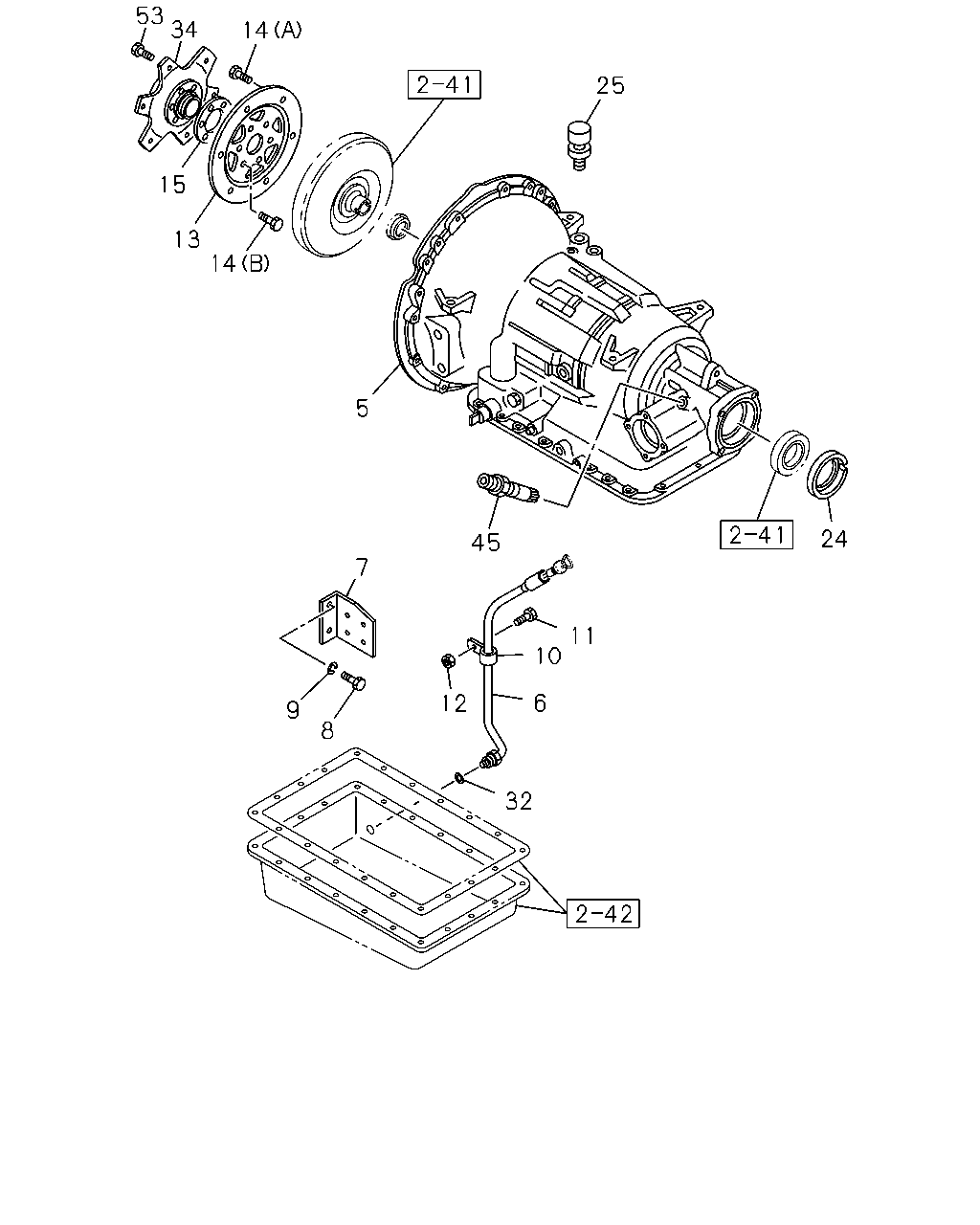

çizim 94518
53 34 14 25 15 13 14 5 24 45 7 11 10 6 12 9 8 32
BalonParca AdiParca NoAdetTipApplied Date A B
5 TRANSMISSION ASM; AUTO 1-34000-241-0 01 1 9202- ●
5 TRANSMISSION ASM; AUTO 1-34000-189-1 01 1 9202- ●
6 FILLER; OIL 1-34121-081-0 01 1 9202- ● ●
7 BRACKET; OIL FILLER 1-34129-044-0 01 1 9202- ● ●
8 BOLT; BRKT 1-09040-013-0 02 1 9202- ● ●
9 WASHER; LK
ID=16.2 		9-09150-516-0 02 1 9202- ● ●
10 CLIP; OIL FILLER
ID=19 		1-09700-664-0 02 1 9202- ● ●
11 BOLT; CLIP
M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9202- ● ●
12 NUT; BOLT
M8 		9-09110-408-0 04 1 9202- ● ●
13 PLATE; FLEX,A/T 1-32213-022-0 01 1 9202- ● ●
14 BOLT; FLEX PLATE
(A) M10X15 		1-89920-240-3 06 1 9202- ● ●
14 BOLT; FLEX PLATE
(B) 		9-92061-425-0 06 1 9202- ● ●
15 WASHER; FLEX PLATE 1-32213-009-1 01 1 9202- ● ●
24 COVER; SEALED 1-34125-002-0 01 1 9202- ● ●
25 BREATHER; AIR 1-33547-004-2 01 1 9202- ● ●
32 GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09921-103-0 01 1 9202- ● ●
34 ADAPTER 8-94396-923-1 01 1 9202- ● ●
45 GEAR; DRIVEN,SPD,A/T
Z=17 		1-33372-065-0 01 1 9202- ● ●
53 BOLT; ADAPTER 1-09044-062-0 06 1 9202- ● ●
